Required SageMaker Python SDK parameters

The TensorFlow and PyTorch Estimator objects contains a distribution parameter, which is used to enable and specify parameters for the initialization of the SageMaker distributed model parallel library. The library internally uses MPI, so in order to use model parallelism, MPI must also be enabled using the distribution parameter.

The following is an example of how you can launch a new PyTorch training job with the library.

sagemaker_session = sagemaker.session.Session(boto_session=session)

mpi_options = {
               "enabled" : True,
               "processes_per_host" : 8,
               "custom_mpi_options" : "--mca btl_vader_single_copy_mechanism none "
               }

smp_options = {
               "enabled":True,
               "parameters": {
                  "microbatches": 4,
                  "placement_strategy": "spread",
                  "pipeline": "interleaved",
                  "optimize": "speed",
                  "partitions": 2,
                  "ddp": True,
               }
            }

smd_mp_estimator = PyTorch(
         entry_point="training-script.py", # Pick your train script
         source_dir='utils',
         role=role,
         instance_type='ml.p3.16xlarge',
         sagemaker_session=sagemaker_session,
         framework_version='1.6.0',
         py_version='py3',
         instance_count=1,
         distribution={
            "smdistributed": {"modelparallel": smp_options},
            "mpi": mpi_options
         },
         base_job_name="SMD-MP-demo",
      )

smd_mp_estimator.fit('s3://my_bucket/my_training_data/')

smdistributed Parameters

You can use the following parameters to initialize the library using the parameters in the smdistributed of distribution.

Note: partitions is required in parameters of smp_options. All other parameters in the following table are optional.

Parameter	Type / Valid values	Default	Description
partitions (required)	int		The number of partitions to split the model into.
microbatches	int	1	The number of microbatches to perform pipelining over. 1 means no pipelining. Batch size must be divisible by the number of microbatches.
pipeline	"interleaved" or "simple"	"interleaved"	The pipeline schedule.
optimize	"memory" or "speed"	"memory"	Whether the library should optimize for speed or memory during partitioning decision and pipeline execution. speed When the library is configured to optimize speed, it attempts to balance the number of operations executed in each device, and executes a less strict pipeline schedule in which a microbatch can start executing before the previous microbatch is completely finished on that device. memory When the library optimizes memory, it attempts to balance the total number of stored trainable parameters and activations on each device and imposes a strict pipeline schedule on the backend.
placement_strategy	"cluster" or "spread"	"cluster"	When hybrid model/data parallelism is used, cluster places a single model replica in neighboring device IDs, whereas spread places them as far as possible. Example: - 8 GPUs: [0, 1, 2, 3, 4, 5, 6, 7], 4-way model parallelism, 2-way data parallelism. Two model replicas, each partitioned across 4 GPUs. spread places the two model replicas in [0, 2, 4, 6] and [1, 3, 5, 7]. cluster places the two model replicas in [0, 1, 2, 3] and [4, 5, 6, 7]. This can be useful, for instance, for performing model parallelism across instances, and leaving the intra-node high-bandwidth NVLinks for data parallelism.
auto_partition	bool	True	Enable auto-partitioning. If disabled, default_partition parameter must be provided.
default_partition (required if auto_partition if false)	int	0	The partition ID to place operations/modules that are not placed in any smp.partition contexts.

TensorFlow-specific parameters

Parameter	Type / Valid values	Default	Description
contiguous	bool	True	Whether the model partitions should be contiguous. If true, each partition forms a connected component in the computational graph, unless the graph itself is not connected.
horovod	bool	False	Must be set to True if hybrid model/data parallelism is used and the data parallelism (DP) framework is Horovod.

PyTorch-specific parameters

Parameter	Type / Valid values	Default	Description
memory_weight	float (between 0.0 and 1.0)	0.2 if optimize is "speed", else 0.8	The weight of memory balancing in the auto-partitioni ng objective, as opposed to balancing computational load. If 0.0, the library only tries to balance computation; if 1.0 the library only tries to balance the memory use. Any value in between interpolates between these extremes.
ddp	bool	False	Must be set to True if hybrid model/data parallelism is used with DistributedDataParallel. DistributedDataParallel is used with NCCL backend, and uses the MASTER_PORT provided by SageMaker.

mpi Parameters

For the "mpi" key, a dict must be passed which contains:

• "enabled": Set to True to launch the training job with MPI.

• "processes_per_host": Specifies the number of processes MPI should launch on each host. In SageMaker a host is a single Amazon EC2 ml instance. The SageMaker distributed model parallel library maintains a one-to-one mapping between processes and GPUs across model and data parallelism. This means that SageMaker schedules each process on a single, separate GPU and no GPU contains more than one process. If you are using PyTorch, you must restrict each process to its own device using torch.cuda.set_device(smp.local_rank()). To learn more, see Modify a PyTorch Training Script.

  Important

  process_per_host must be less than or equal to the number of GPUs per instance, and typically will be equal to the number of GPUs per instance.

  For example, if you use one instance with 4-way model parallelism and 2-way data parallelism, then processes_per_host should be 2 x 4 = 8. Therefore, you must choose an instance that has at least 8 GPUs, such as an ml.p3.16xlarge.

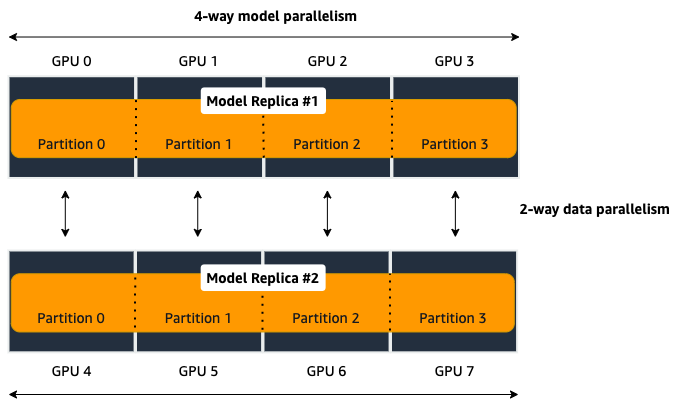

  The following image illustrates how 2-way data parallelism and 4-way model parallelism is distributed across 8 GPUs: the model is partitioned across 4 GPUs, and each partition is added to 2 GPUs.



• "custom_mpi_options": Use this key to pass any custom MPI options you might need. To avoid Docker warnings from contaminating your training logs, we recommend the following flag. `--mca btl_vader_single_copy_mechanism none`

Ranking Basics

The library maintains a one-to-one mapping between processes and available GPUs: for each GPU, there is a corresponding CPU process. Each CPU process maintains a “rank” assigned by MPI, which is a 0-based unique index for the process. For instance, if a training job is launched with 4 p3dn.24xlarge instances using all its GPUs, there are 32 processes across all instances, and the ranks of these processes range from 0 to 31.

The local_rank of a process is the rank of the process among the processes in the same instance. This can range from 0 up to the number of GPUs in the instance, but can be lower if fewer processes than GPUs are launched in the instance. For instance, in the preceding example, local_ranks of the processes will range from 0 to 7, since there are 8 GPUs in a p3dn.24xlarge instance.

When the library is used together with data parallelism (Horovod for TensorFlow and DDP for PyTorch), the library partitions the set of processes into disjoint mp_groups. An mp_group is a subset of all processes that together hold a single, partitioned model replica. For instance, if a single node job is launched with 8 local processes, and partitions is 2 (meaning the model will be split into 2), there are four mp_groups. The specific sets of processes that form the mp_groups can be adjusted by the placement_strategy option. In this example, if placement_strategy is spread, then the four mp_groups are [0, 4], [1, 5], [2, 6], [3, 7]. An mp_rank is the rank of a process within its own mp_group. In the previous example, the mp_rank of process 1 is 0, and mp_rank of process 6 is 1.

Analogously, the library defines dp_groups as the sets of processes that all hold the same model partition, and perform data parallelism among each other. In the example above, there are two dp_groups, [0, 1, 2, 3] and [4, 5, 6, 7],

since each process within the dp_group holds the same partition of the model, and makes allreduce calls among themselves. Allreduce for data parallelism does not take place across dp_groups. dp_rank is defined as the rank of a process within its dp_group. In the preceding example, the dp_rank of process 6 is 2.
